Connect Extract to viageo.ch

Warning

This section is only useful if your organization provides geodata on the platform viageo.ch or plans-reseaux.ch. You must be an ASIT member to distribute geodata through these platforms.

Info

If you want to test the connection to a non productive instance of viageo.ch, you can use the validation instance. See viageo.ch Validation Instance

This section explains how to connect Extract to the data portal viageo.ch, to read requests from the platform and send back extracted geodata to it.

Configure your resources on viageo.ch

  1. Log in to your viageo.ch account.
  2. Go to your ressources (Diffuser tab > Mes ressources)

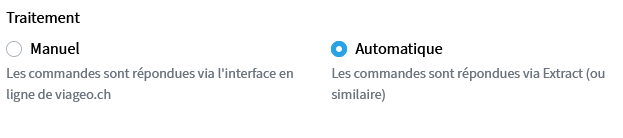

  3. For each geodata you want to distribute via Extract, go to edit mode and set the Traitement parameter to Automatique under the Commande en ligne section.

    metadata

Configure a connector on Extract

  1. Log in to your Extract instance with an administrator role
  2. Create a new EasySDI v4 connector (see Admin guide > Connectors)

  3. The URL du service, Login distant and Mot de passe parameters can be found on viageo.ch under Diffuser > Automatiser le processus

    Warning

    These parameters are only accessible for the main account of your viageo.ch organization.

  1. Usually, you want to create one process by resource from viageo.ch. The process will be in charge of extracting the corresponding geodata. To create a new process see Processes.

  2. Once the process is created, create a new connector's rule (see Connector rules) to connect the process to the corresponding resource from viageo.ch. To do that, the rule syntax is the following:

    productguid == "viageo resource id"

    Info

    Viageo resources id can be found on viageo.ch under Diffuser > Automatiser le processus (only accessible for the main account of your organization) in the resources list.

    resources id
